Street Light Dimmable Led Driver Customizable 36V Output 60W Class2 Thin Slim IP67 UL PWM

Brand Name:	KSPOWER
MOQ:	10 pieces
Price:	$30.20/pieces 10-499 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL cUL CE Class 2 Class P ENEC Gs TYPE HL...

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Type:

MANUAL SWITCH, Constant Voltage

Product Name:

36V High Pfc Dimmers

Output:

36V 60W

Application:

Street Light, Tunnel Light, Wall Lamp,Spot Light

IP Rate:

IP65,IP67

Material:

Aluminium Case

Warranty:

5 Years

Output Mode:

Pwm Output

Efficiency:

≥ 89%

Highlight:

Customizable dimmable led driver

Street Light dimmable led driver

Customizable dimmable led power supply

Product Description

Products Description

Manufacturer black silvery output 60w IP67 Design class2 thin slim Led Power Supply customizable 36V high pfc dimmers

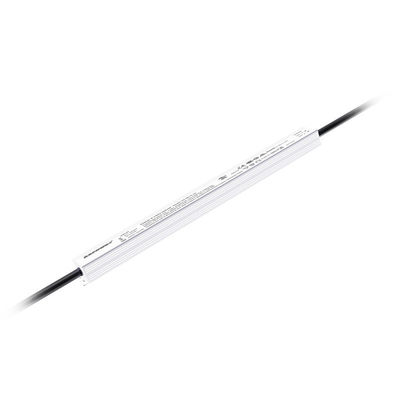

The KSPOWER - LO series 4 in 1 dimmable led driver 60 Watt is one constant voltage slim housing solution, single channel, accept standard AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt 36Volt 48Volt optional with greater operating efficiency and higher PFC function. The class 2 dimming power transformer use low profile metal aluminum case, dry and damp, makes the 0-10V 1-10V PWM dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PWM output and IP65 waterproof environment protection rated for indoor or outdoor use, the UL cUL CE GS certified dimmable led drivers provide 5 years warranty and outstanding led dimming performance.

Features:
* Height to 24.5 mm
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt options
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: 0/1-10V or Resistor PWM Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation

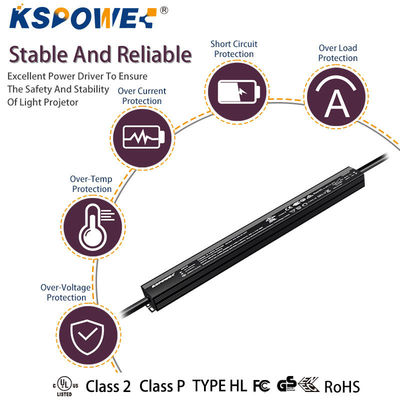

* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage

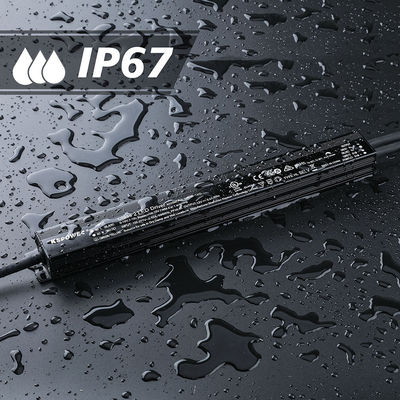

* IP65 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service

Input Voltage	100~277V AC 47~63Hz
Power Factor	PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.	KSLO-60W
Output Voltage	12V/ 24V/ 36V/ 48V
Rated Current	5A/2.5A/1.67A/1.25A
Rated Power	60W
Ripple & Noise (max.)	200mVp-p/ 250mVp-p
Dimension(LWH)	3103224.5MM/ 12.21.250.96 inch

Dimming Connect Drawing

Street Light Dimmable Led Driver Customizable 36V Output 60W Class2 Thin Slim IP67 UL PWM 0

Street Light Dimmable Led Driver Customizable 36V Output 60W Class2 Thin Slim IP67 UL PWM 1
