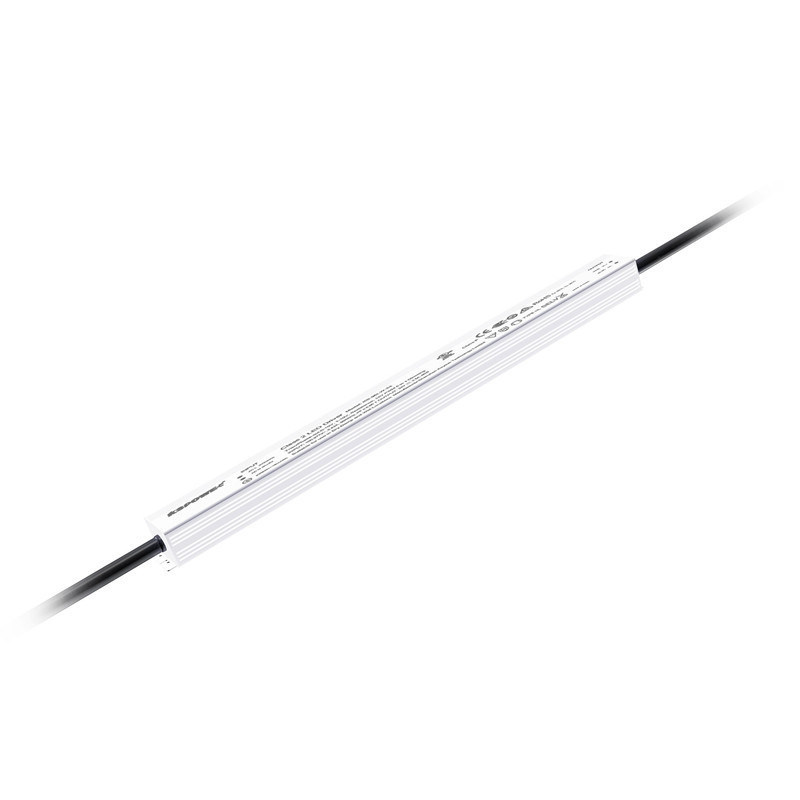

Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver

Brand Name:	KSPOWER
MOQ:	10 pieces
Price:	$29/pieces 10-499 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL cUL CE Class 2 Class P ENEC Gs TYPE HL...

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Type:

MANUAL SWITCH, Constant Voltage

Product Name:

80Watt Watts Pwm LED Driver

Output:

12V 24V 36V 48V 80W

Application:

Street Light, Tunnel Light, Wall Lamp,Spot Light

IP Rate:

IP65,IP67

Material:

Aluminium Case

Warranty:

5 Years

Output Mode:

Pwm Output

Efficiency:

≥ 89%

Highlight:

Transformer 0-10v Dimmable Driver

Waterproof 0-10v Dimmable Driver

80w Ultra Slim Led Driver

Product Description

Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver

Products Description

The KSPOWER - LO series 4 in 1 dimmable led driver 80 Watt is one constant voltage slim housing solution, single channel, accept standard AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt 36Volt 48Volt optional with greater operating efficiency and higher PFC function. The class 2 dimming power transformer use low profile metal aluminum case, dry and damp, makes the 0-10V 1-10V PWM dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PWM output and IP65 waterproof environment protection rated for indoor or outdoor use, the UL cUL CE GS certified dimmable led drivers provide 5 years warranty and outstanding led dimming performance.

Features:
* Height to 24.5 mm
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt options
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: 0/1-10V or Resistor PWM Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP65 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Input Voltage	100~277V AC 47~63Hz
Power Factor	PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.	KSLO-80W
Output Voltage	12V/ 24V/ 36V/ 48V
Rated Current	6.67A/ 3.33A/ 2.22A/ 1.67A
Rated Power	80W
Ripple & Noise (max.)	200mVp-p/ 250mVp-p
Dimension(LWH)	3103224.5MM/ 12.21.250.96 inch

Dimming Connect Drawing

Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver 0

Dimming Type	Series	Power	Model (xx=output voltage)	Output voltage& Output current				Input voltage	Size
Dimming Type	Series	Power	Model (xx=output voltage)	12V	24V	36V	48V	Input voltage	Size
4 in 1 dimming	LO	30W	KS-30LW-xxO	2.5A	1.25A	0.83A	0.62A	100~277V 50/60Hz	2703224.5mm
		40W	KS-40LW-xxO	3.33A	1.66A	1.11A	0.83A		2703224.5mm
		60W	KS-60LW-xxO	5A	2.5A	1.67A	1.25A		3103224.5mm
		80W	KS-80LW-xxO	6.66A	3.33A	2.22A	1.66A		3103224.5mm
		96W	KS-96LW-24O	/	4A	/	/		3553224.5mm
		100W	KS-100LW-xxO	8.33A	4.16A	2.78A	2.08A		3553224.5mm

Note:Any custom label/package/case is acceptable, provide OEM and ODM service.

Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver 1
