12V 5A Dimmable LED Driver with 95% Efficiency and 5 Years Warranty for Landscape Lighting

12V 5A Dimmable LED Driver with 95% Efficiency and 5 Years Warranty for Landscape Lighting
Quality 12V 5A Dimmable LED Driver with 95% Efficiency and 5 Years Warranty for Landscape Lighting factory
Quality 12V 5A Dimmable LED Driver with 95% Efficiency and 5 Years Warranty for Landscape Lighting factory
Quality 12V 5A Dimmable LED Driver with 95% Efficiency and 5 Years Warranty for Landscape Lighting factory
Quality 12V 5A Dimmable LED Driver with 95% Efficiency and 5 Years Warranty for Landscape Lighting factory
Quality 12V 5A Dimmable LED Driver with 95% Efficiency and 5 Years Warranty for Landscape Lighting factory
Quality 12V 5A Dimmable LED Driver with 95% Efficiency and 5 Years Warranty for Landscape Lighting factory
Quality 12V 5A Dimmable LED Driver with 95% Efficiency and 5 Years Warranty for Landscape Lighting factory
Quality 12V 5A Dimmable LED Driver with 95% Efficiency and 5 Years Warranty for Landscape Lighting factory

Basic Properties

country of origin
China
brand name
KSPOWER
certificate
UL cUL CE Class P ENEC Gs TYPE HL...
product model
KS-60LW-xxP

Trading Properties

moq
2 pieces
unit price
The price is negotiable
payment method
T/T
supply capacity
300000pcs/monthly

Product Summary

Constant Voltage Dimmable Landscape Lighting Transformer 12V 5A LED Driver The L series LED drivers are available in both dimmable and non-dimmable versions. The UL cUL FCC CE ENEC GS Listed aluminum enclosure features an IP67 rating suitable for indoor or outdoor installations, with separate input ...

Product Details

Highlight:

20V Dimmable Landscape Lighting Transformer

,

1.5A Dimmable Landscape Lighting Transformer

,

1.5A dimmable low voltage transformer
Product Weight（kg）:
1
Product Name:
Low Voltage Outdoor Lighting Control Transformer
Application:
Street Light, Tunnel Light, Wall Lamp,Spot Light
Warranty:
5 Years
Output Mode:
Pwm Output
Efficiency:
95%
Output:
12V 24V 36V 48V
Type:
Constant Voltage
Material:
Aluminium Case
IP Rate:
IP65

Product Description

Constant Voltage Dimmable Landscape Lighting Transformer 12V 5A LED Driver
The L series LED drivers are available in both dimmable and non-dimmable versions. The UL cUL FCC CE ENEC GS Listed aluminum enclosure features an IP67 rating suitable for indoor or outdoor installations, with separate input and output wiring compartments for clean and easy installation. This 24VDC LED driver transformer includes hiccup mode protection, over current and short circuit protection, and operates at over 88% efficiency for lower operating temperatures.
KSPOWER L SERIES - CONSTANT VOLTAGE
Dimming Options: 5 in 1 dimming (Triac/Phase-cut, 0-10V, 1-10V, PWM, Resistance) or 4 in 1 dimming (0-10V, 1-10V, 10V PWM, Resistance). Non-dimmable version also available.
Input Voltage Universal 100VAC to 277VAC, 50/60Hz
Output Voltage 12VDC, 24VDC, 36VDC, or 48VDC
Driver Type CV Class P SELV PFC function
Enclosure LISTED Enclosure with/without Junction Box
Dimming PWM, TRIAC, 0/1-10V or MLV/ELV Dimmable
Environmental Dry and Damp locations
IP Rating IP67
Key Features
  • Ultra slim height (24.5mm)
  • Wiring compartments with knock-outs for clean installation
  • Current limiting overload protection
  • Flicker-free operation
  • Smooth ripple-free output voltage
  • IP67 rated enclosure for indoor/outdoor use
  • 5-year warranty
  • UL/cUL FCC CE ENEC GS Listed, SELV, Type HL
Contact us for free samples!

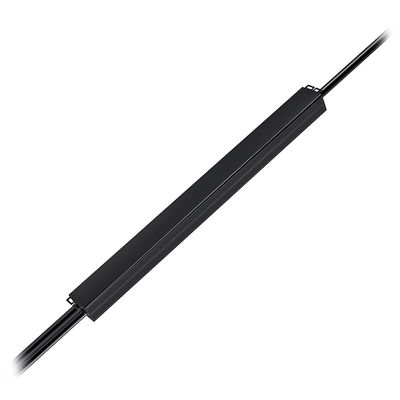

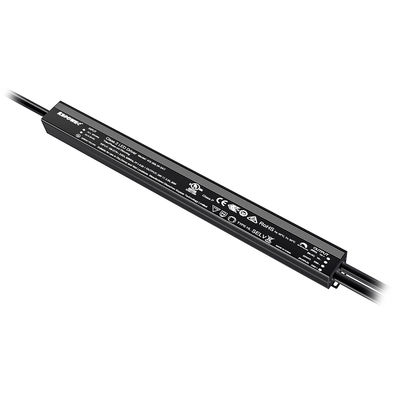

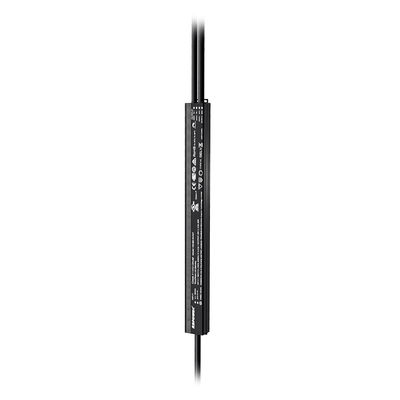

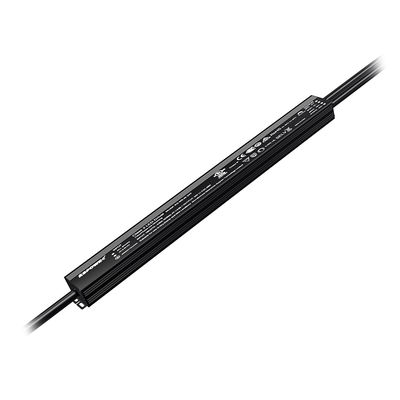

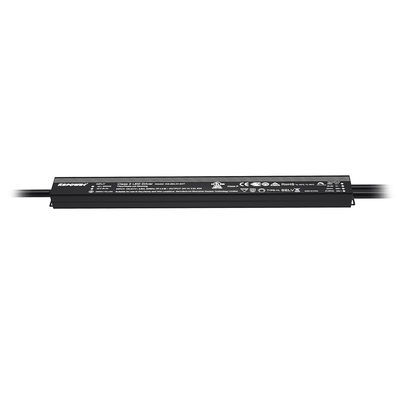

KSPOWER L Series LED Driver front view KSPOWER L Series LED Driver side view KSPOWER L Series LED Driver wiring diagram KSPOWER L Series LED Driver installation example KSPOWER L Series LED Driver specifications label

FQA
.UL/cUL listed 5-year warranty
.IP65 waterproof,indoor & outdoor
100% burn-in tesed
.OEM/ODM:custom voltage,cable,label

Why choose us?
.Triac/0-10V/1-10V PWM/Resistance dimming/Non-dimming,multiple dimmable function combinations are available.Suitable for forward & reverse phase dimming(MLV/ELV)
.Slim shape,suitable for tighter spaces
.Input voltage 100-277V,12V24V36V48V output voltage optional,and 30-100W power range.Glue filling process,heat dissipation,waterproof and moisture-proof
.Hige efficiency and energy saving ,high PFC,flicker-free
.Approved UL/cUL Class2 FCC CE GS ENEC RoHS cert
