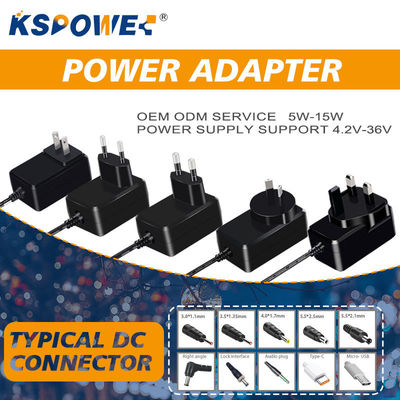

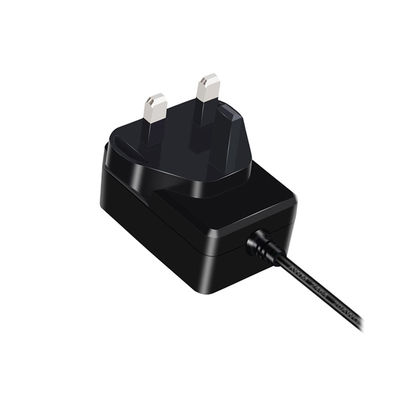

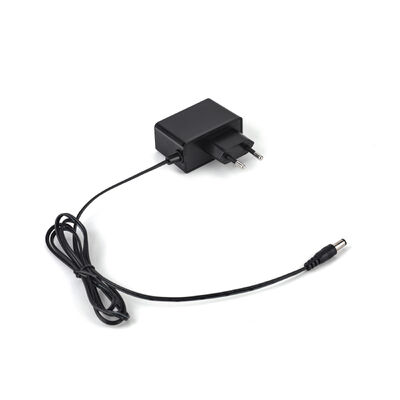

24W UL Certified Wall Power Adapter with 3 Years Warranty and AC DC Power Supply

Brand Name:	KSPOWER
Model Number:	KS39DU-xxxyyyy
MOQ:	1 pieces
Price:	$1.98-$2.65/piece
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL cUL FCC CE GS KC PSE SAA RoHS CB UKCA etc

Output Type:

Single Phase

Input:

AC 100-240v 50-60hz

Output Voltage:

9V12V15V19V20V24V36V48V

Certificate:

UL UKCA CUL CE KC KCC GS SAA RCM CB FCC PSE CCC RoHS EPR

Color:

White Black Customized

Type:

Plug In

Efficiency:

DOE VI, CEC VI

Warranty:

3 Years

Packaging Details:

Small box and Carton

Highlight:

12V 1A switching power supply adapter

Security Cameras switching power supply adapter

Custom AC DC Switching Power Adapter

Product Description

12V 2A 24W Industrial Wall Plug Power Supply

Professional-grade industrial wall plug power supply delivering reliable 24W output with comprehensive safety certifications and global compatibility.

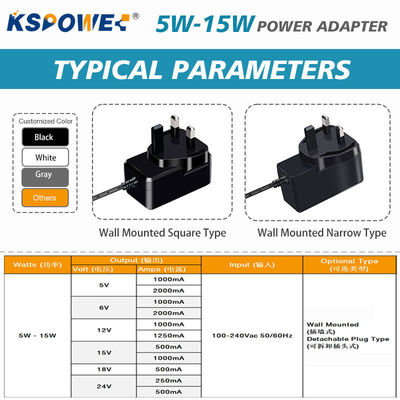

Technical Specifications

Output Mode: Constant voltage
Input Voltage: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output Range: DC5V-36V, 0.01A-3A, 24W Max
Protections: Short circuit, over current, over voltage
Energy Efficiency: DOE, CEC, ERPII MEPS GEMS
Operating Environment: 0-40℃, 5%-95% RH
Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB

Regional Specifications

Country	Max. Watt	Voltage Range	Current Range	Safety Standard
US	24W	DC5-36V	0.01A-3.0A	EN62368/UL 1310
EU	24W	DC5-36V	0.01A-3.0A	EN62368
UK	24W	DC5-36V	0.01A-3.0A	EN62368
AU	24W	DC5-36V	0.01A-3.0A	EN62368
KR	24W	DC5-36V	0.01A-3.0A	EN62368
JP	24W	DC5-36V	0.01A-3.0A	EN62368
CN	24W	DC5-36V	0.01A-3.0A	CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020

Key Features

Single channel constant voltage power supply
100% full load burn-in testing
Passes LPS (limited power source) requirements
3-year comprehensive warranty
Class II power design (without earth pin)
Compact size with fully enclosed PC plastic case
Fast startup time: <3 seconds
High energy efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI
Automatic safety protections for over current, over load, and short circuit

Compatible AC Plugs

US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and other regional standards

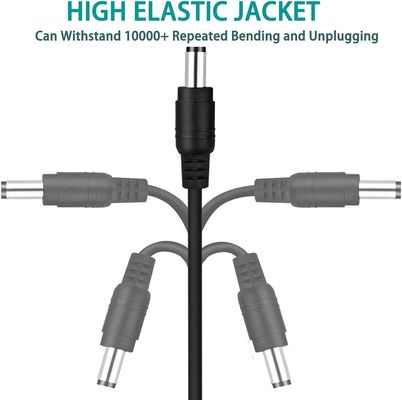

Available DC Connectors

5.5*2.1mm, 5.5*2.5mm, 4.0*1.7mm, 3.5*1.35mm, 2.5*0.7mm, XLR, Cigarette lighter, and other customizable options

Applications

Ideal for electric grill ovens, LED strips, audio amplifiers, wireless routers, and audio/video power supplies. Not waterproof - indoor use only.

Customization Services

We offer comprehensive OEM and ODM services with custom labeling, packaging, and case design options available to meet your specific requirements.
