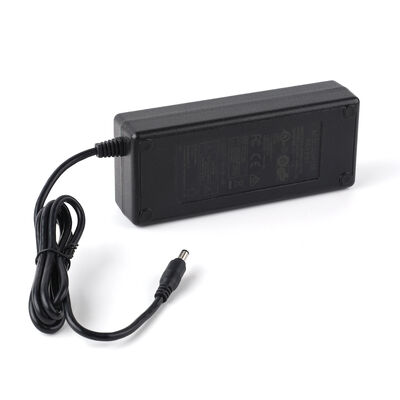

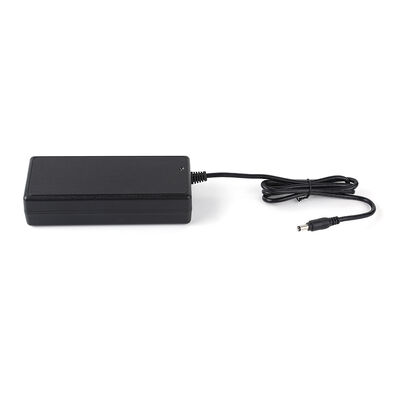

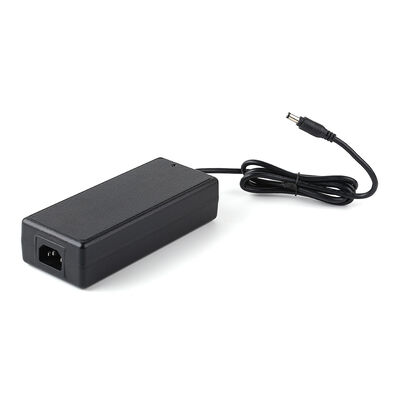

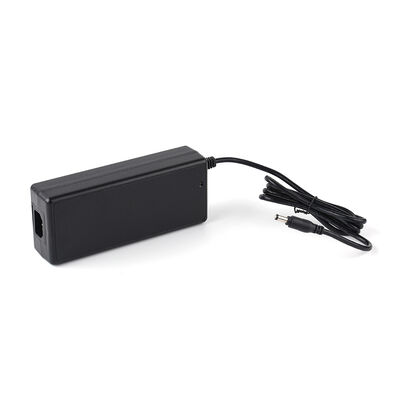

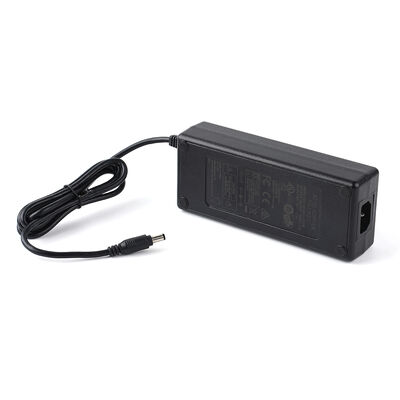

150W NAS Desktop Power Adapter with Energy Efficiency Grade VI and 3-Year Warranty

Brand Name:	KSPOWER
Model Number:	KS150DU-xxxyyyy
MOQ:	1 pieces
Price:	$13.69-14.86/pieces
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

cUL/UL/CE/GS/SAA/KC/CB/FCC/C-TICK/PAHS/ROHS

Phase:

Single Phase

Efficiency:

> 88 % (Energy Efficiency Grade VI)

DC Jack:

5.5*2.1/5.5*2.5mm Or Custom

DC Cable:

1.2m/1.5m Or Custom

Warranty:

3 Years

Color:

Black & White

Material:

100% PC

Type:

Desktop Version

Output:

9V12V15V18V19V20V24V30V36V48V

Packaging Details:

Brown box and Carton

Highlight:

220V Desktop Power Adapter

Compact Desktop Power Adapter

Compact AC To DC Power Adapter

Product Description

150W Network Attached Storage (NAS) Desktop Adapter

High-performance 150W desktop power adapter designed specifically for Network Attached Storage systems

Key Specifications

Output Mode: Constant voltage
Input Voltage: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Protection Features: Short circuit, current, and voltage protection
Energy Efficiency: Compliant with DOE, CEC, ERPII MEPS GEMS standards
AC Inlet Options: C8/C6/C14/Fixed
Operating Environment: 0-40℃, 5%-95% RH

Compatibility & Connectors

AC Plugs Available: US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and others
DC Plug Options: 5.5*2.1/5.5*2.5/4.0*1.7/3.5*1.35/2.5*0.7/XLR/Cigarette lighter (customizable)

Certifications

UL cUL FCC GS CCC CQC KC PSE UKCA SAA C-tick RCM RoHS CB etc

International Specifications

Country	Max. Watt	Voltage Range	Current Range	Safety Standard
US, EU, UK, AU, KR, JP, CN	150W	DC5-48V	0.01-12.5A	EN62368/UL 1310, EN61558, CCC-GB 4943.1-2022, CQC-GB 4343.1-2018;GB/T 4343.2-2020

Customization Process

Production Process

Certification Samples

Customization Services

We provide comprehensive OEM and ODM services with custom labeling, packaging, and case options available to meet your specific requirements.
