UL Certified Wall Power Adapter with 5V 12V 24V Output and 12W 24W Power for Intelligent Door Lock

UL Certified Wall Power Adapter with 5V 12V 24V Output and 12W 24W Power for Intelligent Door Lock

Brand Name:	KSPOWER
Model Number:	KSDU
MOQ:	5 pieces
Price:	$0.80-2.40/pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Output Type:

Single Phase

Input Voltage:

100-240 Volts AC 50/60Hz

Output Voltage:

12V/5V

Output Current:

1A/2A

Product Name:

12V Switching Power Supply For Intelligent Door Lock

Output:

12V/5V

Rated Power:

10W/12W/24W

Input:

AC 100-240v 50-60hz

Certificate:

UL CUL CE KC KCC GS SAA RCM CB FCC PSE CCC RoHS EPR

Color:

White Black Customized

Type:

Wall Mount

Efficiency:

DOE VI, CEC VI

Warranty:

3 Years

Application:

Intelligent Door Lock, LED Strips, Audio Amplifiers, Wireless ,etc

Highlight:

UL Certified Wall Power Adapter

5v 2a Wall Power Adapter

Intelligent Door Lock Transformer

Product Description

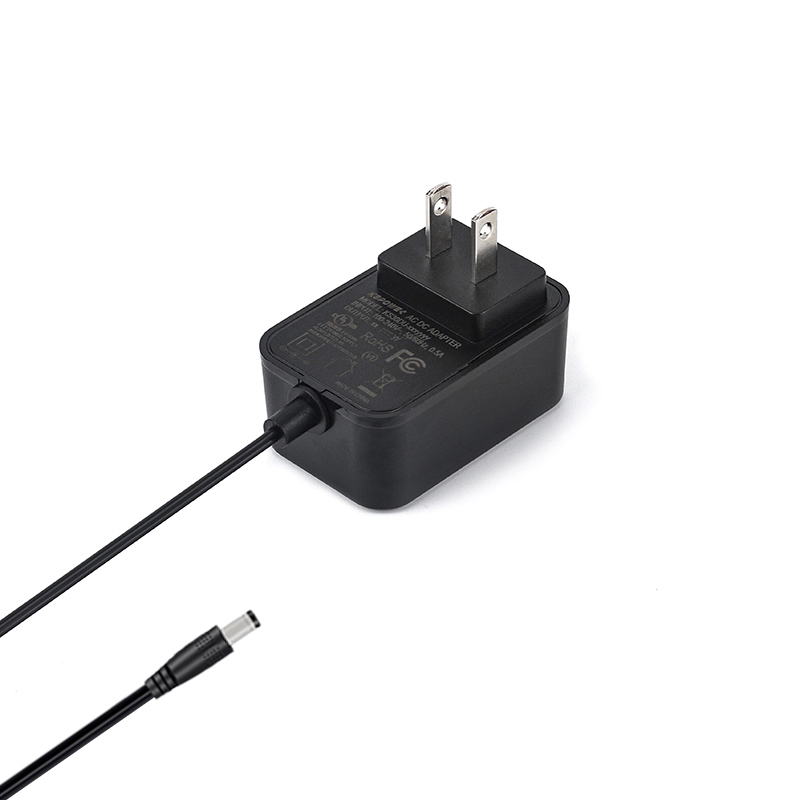

UL Certified Wall Power Adapter 5V 12V 24V 12W 24W Intelligent Door Lock Power Supply

KSPOWER 24W Series power adapter provides reliable constant voltage output for intelligent door locks and other electronic devices.

Technical Specifications

Output mode: Constant voltage modes
Input: AC100-240Vac,50/60Hz or 220-240Vac,50/60Hz
Output: DC5V-36V,0.01A-3A,24W Max
Protections: Short circuit/current/voltage
Energy Efficiency: DOE,CEC,ERPII MEPS GEMS
Working environment: 0-40℃,5%-95%RH
Certifications: UL,cUL,FCC,GS,CCC,CQC,KC,PSE,UKCA,SAA,C-tick,RCM,RoHS,CB

Regional Specifications

Country	Max.Watt	Voltage Range	Current Range	Safety Standard
US	24W	DC5-36V	0.01A-3.0A	EN62368/UL 1310
EU	24W	DC5-36V	0.01A-3.0A	EN62368
UK	24W	DC5-36V	0.01A-3.0A	EN62368
AU	24W	DC5-36V	0.01A-3.0A	EN62368
KR	24W	DC5-36V	0.01A-3.0A	EN62368
JP	24W	DC5-36V	0.01A-3.0A	EN62368
CN	24W	DC5-36V	0.01A-3.0A	CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020

Key Features

Single channel & Constant Voltage power supply
100% Full load burn-in test
Pass LPS (limited power source)
3 Years Warranty
Class II power (without earth pin)
Compact size, fully enclosed PC plastic case
Starting time: ＜3 s
Energy Efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI
Safety automatic protections for over current, over load and short circuit

Compatible AC Plugs

US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and others

Available DC Plugs

5.5*2.1/5.5*2.5/4.0*1.7/3.5*1.35/2.5*0.7/XLR/Cigarette lighter etc (Customizable)

Applications

The AC adapter is suitable for electric grill oven, LED strips, audio amplifiers, wireless routers, audio and video power supplies, etc. Not waterproof, indoor use only.
