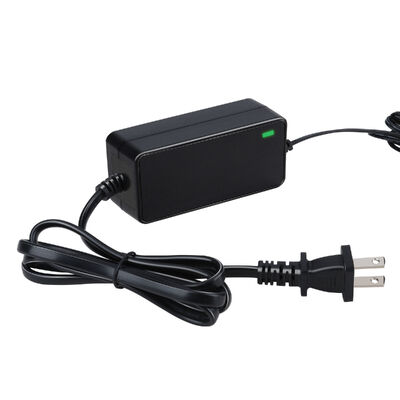

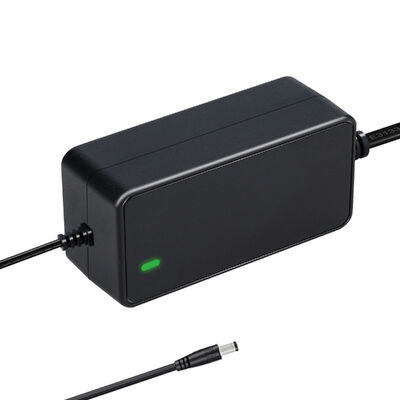

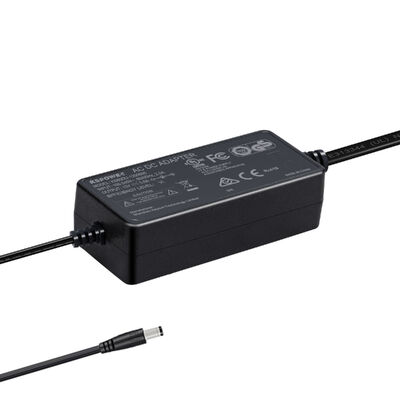

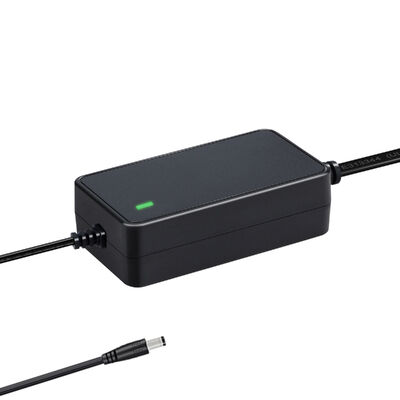

60W 24V 2.5A Class 2 Power Supply with 3 Years Warranty for LED Strip Lights

Brand Name:	KSPOWER
Model Number:	ZF120A-xxxyyyy
MOQ:	5 pieces
Price:	The price is negotiable
Payment Terms:	T/T
Supply Ability:	200000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL FCC Class 2

Output Type:

AC TO DC

Connection:

Desktop

Output:

DC 24V2.5A

Input:

AC 100-240v 50-60hz

Color:

White Black Customized

Efficiency:

DOE VI, CEC VI

Warranty:

3 Years

AC Inlet:

C14 C8 C6 Optional

Application:

LED Strip Light, Led Screen, Christmas Led Light,etc

Packaging Details:

Brown box and Carton

Highlight:

Electric Class II Power Supply

12V 5A Class II Power Supply

Customised AC to DC Power Adapter

Product Description

24V 2.5A 60W UL Class 2 Power Supply for Standard 24V LED Tape Light

This 100-240V AC adapter provides reliable power for LED strip lighting systems with constant voltage output and comprehensive safety protections.

Key Specifications

Output mode: Constant voltage
Input: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output: DC24V,2.5A
Protections: Short circuit, current, and voltage protection
Energy Efficiency: Compliant with DOE, CEC, ERPII MEPS GEMS standards
AC inlet: C8/C6/C14/Fixed
Working environment: 0-40℃, 5%-95% RH

Compatibility & Connectors

AC plugs available: US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and others
DC plug options: 5.5*2.1/5.5*2.5/4.0*1.7/3.5*1.35/2.5*0.7/XLR/Cigarette lighter (customizable)

Certifications

UL cUL FCC GS CCC CQC KC PSE UKCA SAA C-tick RCM RoHS CB

International Specifications

Country	Max.Watt	Voltage Range	Current Range	Safety Standard
US, EU, UK, AU, KR, JP, CN	60W	DC5-48V	0.01-8.33A	EN62368/UL 1310, EN61558, CCC-GB 4943.1-2022, CQC-GB 4343.1-2018;GB/T 4343.2-2020

Customization Process

Production Process

Customization Services

We provide OEM and ODM services with custom labeling, packaging, and case options available.
