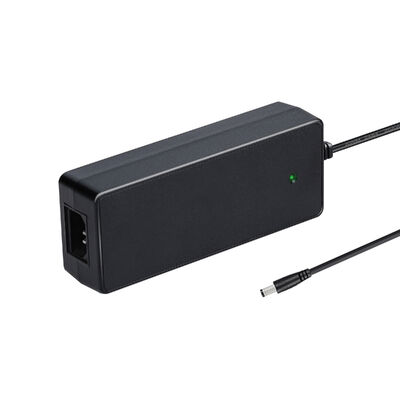

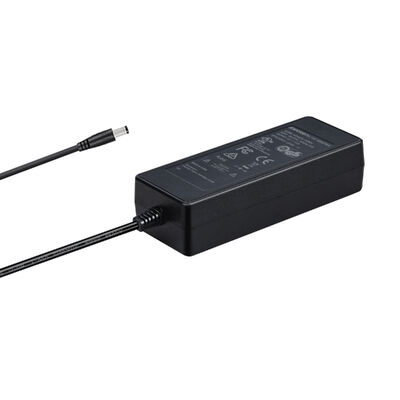

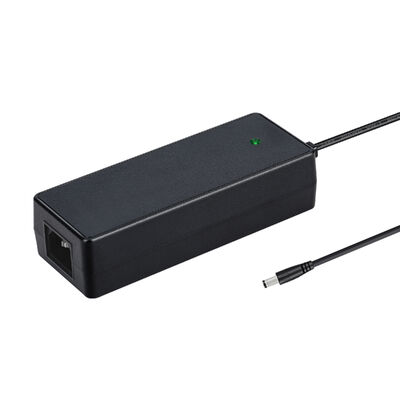

100W 8.33A 12V UL Class 2 Power Supply with 3 Years Warranty for LED Strips

Brand Name:	KSPOWER
Model Number:	ZF120A-xxxyyyy
MOQ:	5 pieces
Price:	$8.15-$9.26/pc
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China (Mainland)

Certification:

UL cUL Class2 FCC

Output Type:

AC TO DC

Connection:

Desktop

Output Voltage:

12V

Output Current:

8.33A

Protection:

OVP, OCP, SCP, OTP, OPP

AC Inlet:

C8 C6 C14

DC Jack:

5.5*2.1mm

Warranty:

3 Years

Material:

100% PC

Type:

Desktop Version

Packaging Details:

Brown box and Carton

Highlight:

240VAC Class 2 LED Power Supply

60Hz Class 2 LED Power Supply

Output Type Desktop Power Adapter

Product Description

12V 8.33A 100W UL Class 2 Power Supply for Maximum LED Strip Length

This 100-240V AC adapter provides reliable power for LED strip lighting systems with constant voltage output and comprehensive safety protections.

Key Specifications

Output mode: Constant voltage
Input: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output: DC12V,8.33A
Protections: Short circuit, current, and voltage protection
Energy Efficiency: Compliant with DOE, CEC, ERPII MEPS GEMS standards
AC inlet: C8/C6/C14/Fixed
Working environment: 0-40℃, 5%-95% RH

Compatibility & Connectors

AC plugs available: US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and others
DC plug options: 5.5*2.1/5.5*2.5/4.0*1.7/3.5*1.35/2.5*0.7/XLR/Cigarette lighter (customizable)

Certifications

UL cUL FCC GS CCC CQC KC PSE UKCA SAA C-tick RCM RoHS CB

International Specifications

Country	Max.Watt	Voltage Range	Current Range	Safety Standard
US, EU, UK, AU, KR, JP, CN	100W	DC5-48V	0.01-8.33A	EN62368/UL 1310, EN61558, CCC-GB 4943.1-2022, CQC-GB 4343.1-2018;GB/T 4343.2-2020

Customization Process

Production Process

Customization Services

We provide OEM and ODM services with custom labeling, packaging, and case options available.
