100W 24V IP65 Waterproof LED Driver with 5-Year Warranty for Indoor and Outdoor Use

Brand Name:	KSPOWER
Model Number:	KS-96AW-24P
MOQ:	2 pieces
Price:	$13.80-33.80/pieces
Payment Terms:	T/T
Supply Ability:	300000pcs/monthly

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL 8750 Class2 Class P EN61347 GS ENEC

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

40W / 60W / 80W/ 100W

Output Type:

PWM / Single

Input Voltage:

100-277V

Output Frequency:

50/60Hz

Product Name:

Class2 IP65 Waterproof Dimmable Led Driver

Application:

LED Strip Light,Pendants, Linears,Cove Lights

Material:

Aluminum Case

Warranty:

5 Years

Protection:

OCP, OVP, SCP, OTP

IP Rate:

IP65

Efficiency:

≥90%

Power:

40W / 60W / 80W/ 100W

Output:

24V

Packaging Details:

Small box and Cartons

Highlight:

Aluminum Case Outdoor LED Driver

Flicker Free Outdoor LED Driver

Class2 Pool Lighting Transformer

Product Description

IP65 96W 100W Class 2 Dimmable LED Driver, Waterproof Power Supply for Outdoor LED Strip Lights

Product Overview

The KS-150W is a versatile 40W/60W/80W/100W 5-in-1 universal dimming Class II driver that accepts 100-277VAC input voltage and provides 24VDC constant voltage output. It delivers flicker-free dimming to 0% on all dimming systems including Triac, 0-10V, 1-10V, PWM, Resistance, MLV, ELV and Incandescent. The high efficiency and sophisticated overload protection enable cooler operation, improved reliability, and extended product life.

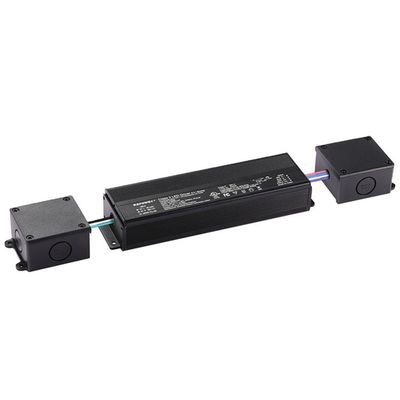

The compact metal case is dry/damp location listed and IP65 rated, making it suitable for a wide range of indoor/outdoor architectural, commercial, industrial, and residential lighting applications. Available with or without integrated junction boxes featuring two knockouts each on both input and output sides.

Key Features

Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
Single Channel & Constant Voltage mode
Output Voltage: 24Volt
Driver Type: Class 2 Class P
Enclosure: LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
Dimming: PWM, TRIAC, 0/1-10V or MLV/ELV Resistance Dimmable Available
Environmental: Dry and Damp locations
Wiring Compartments with Knock-Outs for Clean and Easy Installation
Current Limiting Overload Protection
Flicker-Free operation
Smooth Ripple Free Output Voltage
IP65 Rated Enclosure for Indoor and Outdoor Use
5-Year Warranty
UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Technical Specifications

Dimming Type	Series	Power	Model (xx=output voltage)	Output Voltage & Current	Input Voltage	Size
5 in 1 dimming	HPJ	40W	KS-40AW-xxP	12V:3.3A, 24V:1.67A, 36V:1.11A, 48V:0.83A	100~277V 50/60Hz	2975836mm
5 in 1 dimming	HPJ	60W	KS-60AW-xxP	12V:5A, 24V:2.5A, 36V:1.67A, 48V:1.25A	100~277V 50/60Hz	2975836mm
5 in 1 dimming	HPJ	80W	KS-80AW-xxP	12V:6.67A, 24V:3.33A, 36V:2.22A, 48V:1.67A	100~277V 50/60Hz	2975836mm
5 in 1 dimming	HPJ	96W	KS-96AW-24P	24V:4A	100~277V 50/60Hz	3225836mm
5 in 1 dimming	HPJ	100W	KS-100AW-xxP	12V:8.33A, 24V:4.16A, 36V:2.78A, 48V:2.08A	100~277V 50/60Hz	3225836mm
5 in 1 dimming	HPJ	120W	KS-120AW-xxP	12V:10A, 24V:5A, 36V:3.33A, 48V:2.5A	100~277V 50/60Hz	3225836mm
5 in 1 dimming	HPJ	150W	KS-150AW-xxP	12V:12.5A, 24V:6.25A, 36V:4.16A, 48V:3.13A	100~277V 50/60Hz	3436841mm
5 in 1 dimming	HPJ	180W	KS-180AW-12P	12V:15A	100~277V 50/60Hz	3436841mm
5 in 1 dimming	HPJ	200W	KS-200AW-xxP	12V:16.66A, 24V:8.33A, 36V:5.55A, 48V:4.16A	100~277V 50/60Hz	3436841mm
5 in 1 dimming	HPJ	240W	KS-240AW-xxP	12V:20A, 24V:10A, 36V:6.66A, 48V:5A	100~277V 50/60Hz	3676841mm
5 in 1 dimming	HPJ	300W	KS-300AW-24P	24V:12.5A	100~277V 50/60Hz	3676841mm
5 in 1 dimming	HPJ	320W	KS-320AW-xxP	24V:13.33A, 36V:8.88A, 48V:6.66A	100~277V 50/60Hz	3676841mm

Custom labeling, packaging, and cases are available. We provide OEM and ODM services.
