Spot Light UL Approved IP67 Outdoor LED Driver 100W 277V AC Triac Dimmable LED Driver

Spot Light UL Approved IP67 Outdoor LED Driver 100W 277V AC Triac Dimmable LED Driver

Brand Name:	KSPOWER
Model Number:	KSL
MOQ:	2 pieces
Price:	$6.86-29.45/pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL cUL Class P CE ENEC Gs TYPE HL...

Application:

Lighting

Phase:

Single Phase

Coil Structure:

TOROIDAL

Coil Number:

AUTOTRANSFORMER

Input Voltage:

100V-277Vac

Product Name:

100 Watts Transformer Outdoor Ultra Slim LED Power Supply

Application:

Street Light, Tunnel Light, Wall Lamp,Spot Light

Warranty:

5 Years

Output Mode:

Pwm Output

Efficiency:

95%

Output:

12V 24V 36V 48V

Type:

Constant Voltage

Material:

Aluminum Case

IP Rate:

IP67

Highlight:

Spot Light Outdoor LED Driver

UL Approved Outdoor LED Driver

277V·AC Triac Dimmable LED Driver

Product Description

Products Description

100-277 VAC 12V 24V 36V 48V Output IP67 Outdoor LED Driver 30-100W LED Transformer with dimmable / non-dimmable

Features:
− Universal AC input voltage 100-277VAC − Efficiency up to 91% − Built-in active PFC function − Single channel & constant voltage mode and PWM style output − Protection: OCP, OVP, SCP, OTP − Limited Power Source − cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved − Function options: 1. Non-dimmable 2. Triac/Phase-cut Dimmable 3. 4 in 1 dimmable (0-10V,1-10V,PWM,resistance) 4. 5 in 1 dimmable (0-10V,1-10V,TRIAC,PWM,resistance) − Typical lifetime > 50000 hours − 5 years warranty − Available with or without integrated Junction Box − IP65 IP67 Rated Enclosure for Indoor and Outdoor Use − Wiring Compartments with Knock-Outs for Clean and Easy Installation

Note:Any custom label/package/case is acceptable, provide OEM and ODM service

Input Voltage	100~277V AC 47~63Hz
Power Factor	PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.	KSL
Output Voltage	12volts/ 24volts/ 36volts/48volts
Rated Current	0.62A-8.33A
Rated Power	30w 40w 60w 80w 96w 100w
Certification	UL/cUL/CE/TUV-GS/RoHS/FCC/Class2

Show Details

Company Profile

Working Room

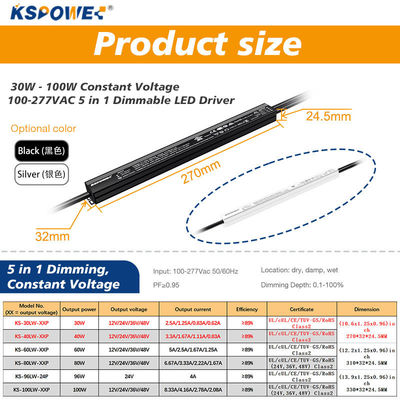

Specification:

Nearly ¥3 Million Is Spent On Certification, Just To Make Customers Trust Our Quality

Exhibition

Product packaging

1.Sample is available.

2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.

Package	Piece/Carton(pcs)	Piece Weight(KG)
OEM package	50	0.26
Dimension/Brown Box(mm)	Dimension/Carton(mm)	Gross Weight/Carton(KG)
1558535	455370175	14
