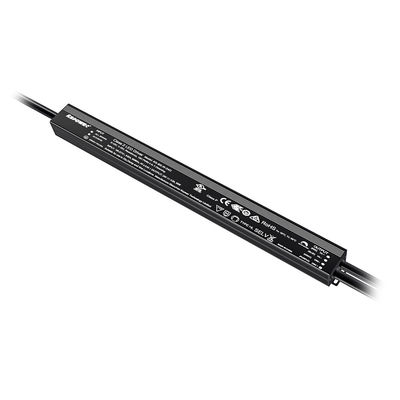

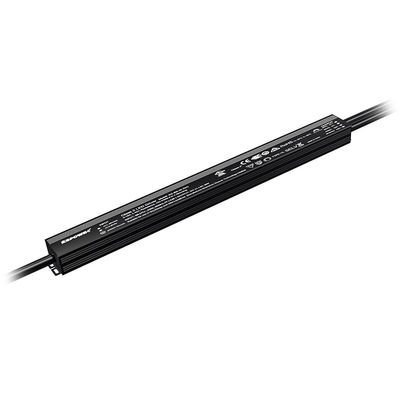

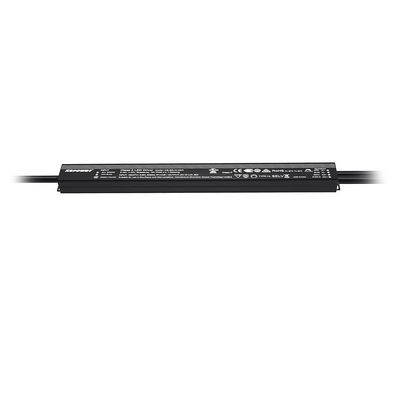

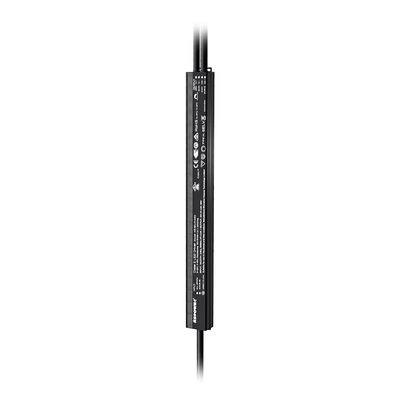

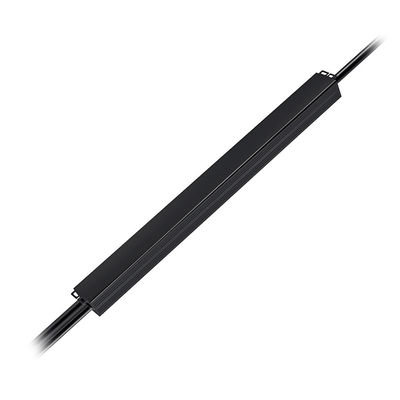

100W PWM Dimmable LED Driver For Safe Lighting Aluminum Case And UL ROHS Certified

100W PWM Dimmable LED Driver For Safe Lighting Aluminum Case And UL ROHS Certified

Brand Name:	KSPOWER
Model Number:	KSLP-12
MOQ:	2 pieces
Price:	$34.20/pieces 2-199 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL 8750 Class2 Class P EN61347 GS ENEC

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

100W

Output Type:

PWM

Input Voltage:

100-277V

Output Frequency:

50/60Hz

Product Name:

12v Dimmable Led Driver

Application:

LED Strip Light,Pendants, Linears,Cove Lights

Material:

Aluminum Case

Warranty:

5 Years

Protection:

OCP, OVP, SCP, OTP

IP Rate:

IP65

Efficiency:

≥90%

Power:

100W

Output:

12V

Highlight:

100W PWM Dimmable LED Driver

Safe PWM Dimmable LED Driver

Aluminum Case 0 10v pwm dimmer

Product Description

Products Description

High Quality Safe 100w 12v ul rohs approved Led Drivers 100W 0-10V/1-10V/triac/pwm/resistance dimmable led driver

The KSPOWER - LP series 5 in 1 dimmable led driver is one constant voltage solution, single channel, accept universal AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt 36Volt 48Volt optional with greater operating efficiency and higher PFC function. The class p dimming power supply use low profile metal aluminum case, dry and damp, makes the dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 2K frequency PWM output and IP67 waterproof environment protection rated for indoor or outdoor use, the 0/1-10V and triac dimmable drivers provide 5 years warranty and outstanding led dimming performance.

Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service

Input Voltage	100~277V AC 47~63Hz
Power Factor	PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.	KSLP
Output Voltage	12V
Rated Current	3.33A-8.33A
Rated Power	40W 60W 80W 100W
Ripple & Noise (max.)	200mVp-p
Certification	UL/cUL CE FCC RoHS ENEC GS

Dimming Connect Drawing

NOW,GET MORE INFORMATIONS OF US !

Company Profile

Working Room

Specification:

Nearly ¥3 Million Is Spent On Certification, Just To Make Customers Trust Our Quality

Exhibition

Hong Kong Exhibition in April 2024

Product packaging

1.Sample is available.

2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.

Package	Piece/Carton(pcs)	Piece Weight(KG)
OEM package	50	0.26
Dimension/Brown Box(mm)	Dimension/Carton(mm)	Gross Weight/Carton(KG)
1558535	455370175	14
