| Brand Name: | Zhenhuan |
| Model Number: | KS100DU-2400400 |
| MOQ: | 5 pieces |
| Price: | $9.80/pieces 5-499 pieces |
Model | ZF120A-2404000 |
Mode | Constant voltage |
Input | 100-240VAC, 50/60Hz |
Output | 24V 4A 96W |
Energy efficiency | level VI |

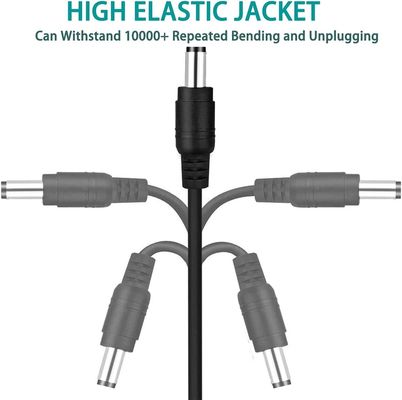

DC cord length | 1.2m/1.5m/1.8m, etc. |

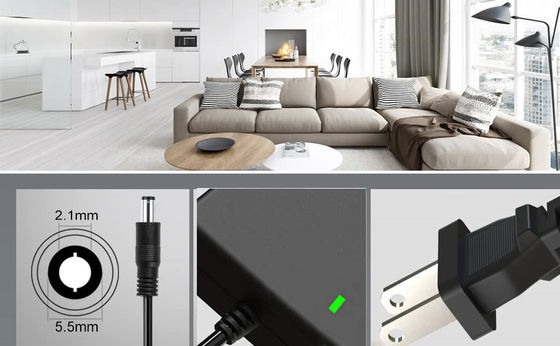

DC jack size | 5.5*2.5mm/5.5*2.1mm/3.5*1.35mm/4.0*1.7mm/2.5*0.7mm/5.5*1.0mm/4 pin, etc. |
Dimension(L*W*H) | 153*60*38mm |
AC inlet | C6/C8/C14 |
AC cord length | 1.2m/1.5m/1.8m, etc. |
AC plug | US/EU/AU/UK/KR/CH/IT, etc. |
Certifications | Class 2 UL / CUL / FCC / CE / ROHS / GS / KC / KCC / PSE / SAA / RCM / C-TICK / CCC / CB, etc. |

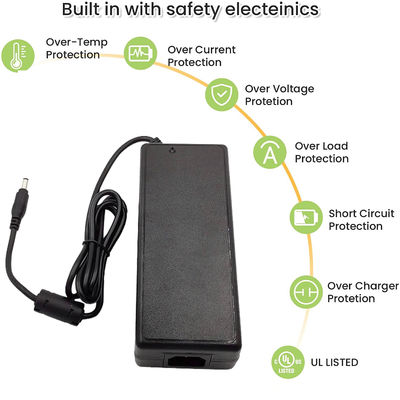

Protections | Short circuit protection, over voltage protection, over current protection |
Working environment | -10°C~+40°C 5%~90%RH |
Storage environment | -20°C~+85°C 5%~95%RH |
MTBF 25℃ | 50,000 hours |
Warranty | 3 years |
Application | LED lighting, communication, appliances, security cctv camera, medical, audio, 3D printer, recliner massage chair, laptop, vending machine, water purifier, etc. |
Package | Piece/Carton(pcs) | Piece Weight(KG) |
OEM package | 50 | 0.26 |
Dimension/Brown Box(mm) | Dimension/Carton(mm) | Gross Weight/Carton(KG) |
155*85*35 | 455*370*175 | 14 |
