products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
5 In 1 Dimmable Driver
Created with Pixso.

5-Year Warranty 60W IP67 LED Driver with ≥90% Efficiency and Triac/Phase-out, 0-10V, 1-10V, 10V PWM, Resistance Dimmable Power Supply

5-Year Warranty 60W IP67 LED Driver with ≥90% Efficiency and Triac/Phase-out, 0-10V, 1-10V, 10V PWM, Resistance Dimmable Power Supply

5-Year Warranty 60W IP67 LED Driver with ≥90% Efficiency and Triac/Phase-out, 0-10V, 1-10V, 10V PWM, Resistance Dimmable Power Supply

Brand Name: KSPOWER
Model Number: KS-60AW-xxP
MOQ: 10 pieces
Price: $23.70-30.5/pieces
Payment Terms: T/T
Supply Ability: 300000pcs/monthly
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
UL FCC CE ROHS SAA CLASS P etc.
Warranty(Year):
5-Year
Lighting Solutions Service:
Lighting And Circuitry Design
Type:
MANUAL SWITCH
Application:
LED Strip Light,Pendants, Linears,Cove Lights
Material:
Aluminum Case
Warranty:
5 Years
Protection:
OCP, OVP, SCP, OTP
Efficiency:
≥90%
Power:
60W
Dimming Mode:
Triac/Phase-out, 0-10V, 1-10V, 10V PWM, Resistance Dimming(5 In 1)
Packaging Details:
Small box and Carton
Highlight:

200w 24v Switching Power Supply

,

Residential Switching Power Supply

,

Commercial 5 in 1 Dimmer Driver

Product Description

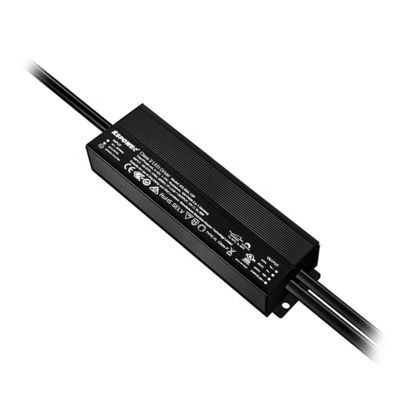

IP67 60W Dimmable LED Driver
Compatible with Leading Edge & Trailing Edge Dimmers
The KSPOWER HP series 5-in-1 dimmable LED driver (40W-320W) is a constant voltage solution that accepts universal AC input voltage from 100V to 277V. Available with output voltages of 12V, 24V, 36V, or 48V, it offers high operating efficiency with PFC function. This Class 2 dimming LED driver is compatible with 0-10V/MLV/ELV Lutron dimmers and features 10K frequency PWM output with IP67 waterproof protection for indoor or outdoor use.
5-Year Warranty 60W IP67 LED Driver with ≥90% Efficiency and Triac/Phase-out, 0-10V, 1-10V, 10V PWM, Resistance Dimmable Power Supply 0
Key Features
  • Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
  • Single Channel & Constant Voltage mode
  • Output Voltage: 12V/24V/36V/48V Optional
  • Driver Type: Class 2 Class P
  • Enclosure: LISTED Enclosure with/without Junction Box
  • Dimming: Triac/Phase-cut, PWM, 0/1-10V or MLV/ELV Resistance Dimmable
  • Environmental: Dry and Damp locations
  • Wiring Compartments with Knock-Outs for clean installation
  • Current Limiting Overload Protection
  • Flicker-Free operation
  • Smooth Ripple Free Output Voltage

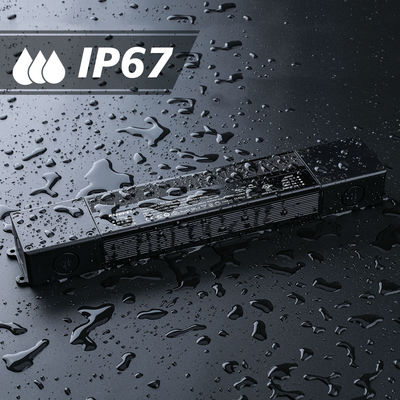

  • IP67 Rated Enclosure for Indoor/Outdoor Use
  • 5-Year Warranty
  • Certifications: UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
5-Year Warranty 60W IP67 LED Driver with ≥90% Efficiency and Triac/Phase-out, 0-10V, 1-10V, 10V PWM, Resistance Dimmable Power Supply 1 5-Year Warranty 60W IP67 LED Driver with ≥90% Efficiency and Triac/Phase-out, 0-10V, 1-10V, 10V PWM, Resistance Dimmable Power Supply 2 5-Year Warranty 60W IP67 LED Driver with ≥90% Efficiency and Triac/Phase-out, 0-10V, 1-10V, 10V PWM, Resistance Dimmable Power Supply 3

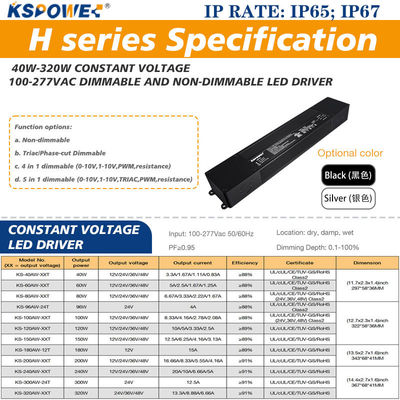

Technical Specifications
Dimming Type Series Power Model (xx=output voltage) Output Voltage & Current Input Voltage Size
5 in 1 dimming HPJ 40W KS-40AW-xxP 12V:3.3A, 24V:1.67A, 36V:1.11A, 48V:0.83A 100~277V 50/60Hz 297×58×36mm
60W KS-60AW-xxP 12V:5A, 24V:2.5A, 36V:1.67A, 48V:1.25A 297×58×36mm
80W KS-80AW-xxP 12V:6.67A, 24V:3.33A, 36V:2.22A, 48V:1.67A 297×58×36mm
96W KS-96AW-24P 24V:4A 322×58×36mm
100W KS-100AW-xxP 12V:8.33A, 24V:4.16A, 36V:2.78A, 48V:2.08A 322×58×36mm
120W KS-120AW-xxP 12V:10A, 24V:5A, 36V:3.33A, 48V:2.5A 322×58×36mm
150W KS-150AW-xxP 12V:12.5A, 24V:6.25A, 36V:4.16A, 48V:3.13A 343×68×41mm
180W KS-180AW-12P 12V:15A 343×68×41mm
200W KS-200AW-xxP 12V:16.66A, 24V:8.33A, 36V:5.55A, 48V:4.16A 343×68×41mm
240W KS-240AW-xxP 12V:20A, 24V:10A, 36V:6.66A, 48V:5A 367×68×41mm
300W KS-300AW-24P 24V:12.5A 367×68×41mm
320W KS-320AW-xxP 24V:13.33A, 36V:8.88A, 48V:6.66A 367×68×41mm
Note: Custom labeling, packaging, and cases are available. We provide OEM and ODM services.
