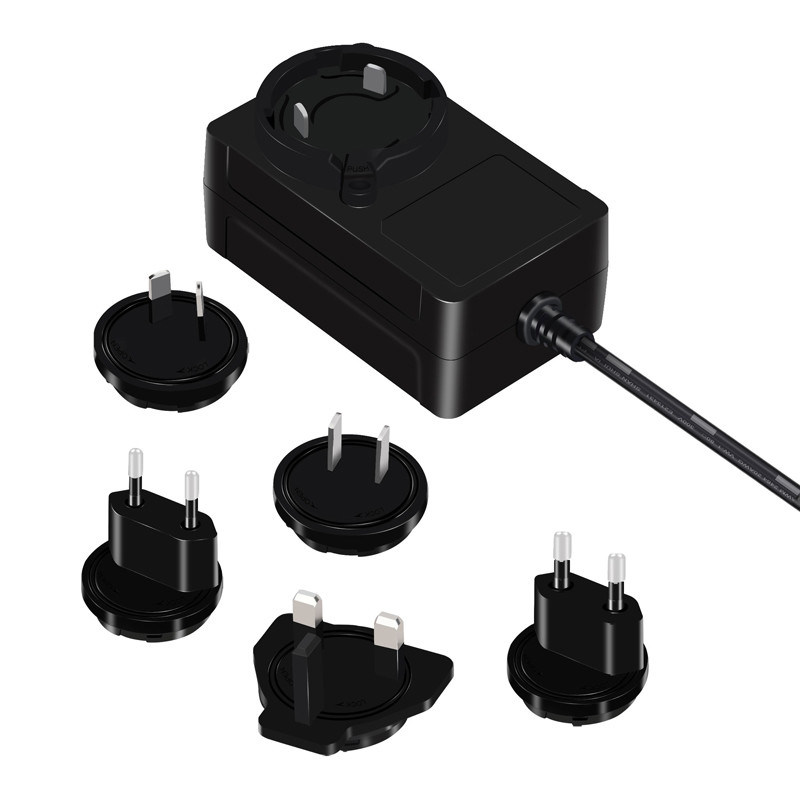

12V3A 36W Interchangeable Plug Adapter with 3 Years Warranty AC DC Power Adapter

12V3A 36W Interchangeable Plug Adapter with 3 Years Warranty AC DC Power Adapter

Basic Properties

country of origin
Guangdong, China
brand name
KSPOWER
certificate
CE KC UL/cUL VI Class2 TUV GS SAA PSE CCC FCC BS CB
product model
KS-xxxyyyy

Trading Properties

moq
100 pieces
unit price
The price is negotiable
payment method
T/T
supply capacity
300000pcs/month

Product Summary

12V3A Interchangeable Plug Adapter 36W AC DC Power Adapter with Overload Protections KSPOWER 48W Series Power Adapter with Multiple Certifications. This versatile power adapter features interchangeable plugs and meets UL, FCC, CE, KC, PSE, and SAA certification standards for global compatibility and ...

Product Details

Highlight:

12V 1A Interchangeable Power Adapter

,

Overload Protections Interchangeable Power Adapter

,

Overload Protections AC DC Power Adapter

Output Type:
AC TO DC
Connection:
Plug In
Output:
36W
Input:
100-240Vac 50/60Hz
DC Jack:
5.5*2.1/5.5*2.5mm Or Custom
DC Cable:
1.2m Or Custom
Application:
LED Light, CCTV Camera Etc.
Protections:
Short Circuit, Overload, Over Voltage, Over Temperature
Color:
White Black Customized

Product Description

12V3A Interchangeable Plug Adapter 36W AC DC Power Adapter with Overload Protections
KSPOWER 48W Series Power Adapter with Multiple Certifications. This versatile power adapter features interchangeable plugs and meets UL, FCC, CE, KC, PSE, and SAA certification standards for global compatibility and safety.
Technical Specifications
Input AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output DC5V-36V, 0.01A-4A, 48W Max
Output Mode Constant voltage
Protections Short circuit/current/voltage
Energy Efficiency DOE, CEC, ERPII MEPS GEMS
Working Environment 0-40℃, 5%-95%RH

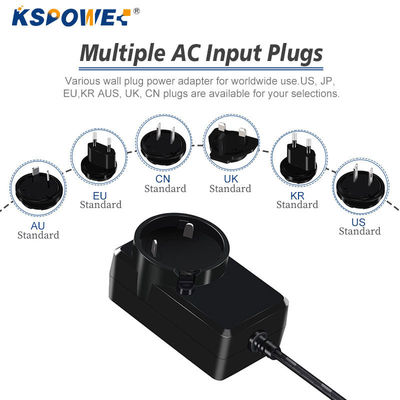

Plug Options
AC plugs: US, EU, UK, AU, Korea, Japan, China
DC plugs: 5.5*2.1/5.5*2.5/4.0*1.7/3.5*1.35/2.5*0.7/XLR/

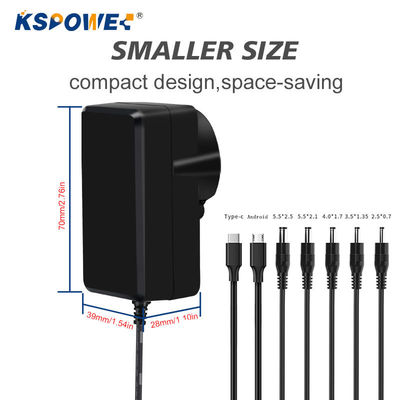

Dimensions
12V4A 48W Power Adapter dimensions
Key Features
  • Multiple AC plugs (plug kit sold separately)
  • Universal AC input voltage
  • Single channel & Constant Voltage power supply
  • 100% Full load burn-in test
  • Pass LPS (limited power source)
  • 3 Years Warranty
  • Class II power (without earth pin)
  • Compact size, fully enclosed PC plastic case
  • Energy Efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI

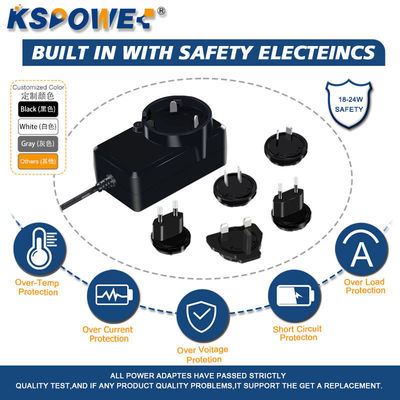

  • Safety automatic protections for over current, over load and short circuit

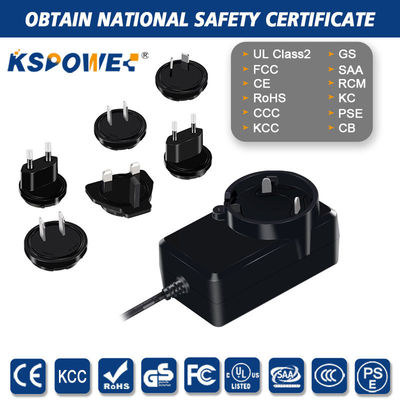

  • Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB etc.

FQA

Q1: What is the maximum output power of this power adapter?
A: Max output power 48W, constant‑voltage output DC 5‑36V, 0.01‑4A.
Q2: What safety protections are built‑into this unit?
A: Equipped with automatic short‑circuit, over‑current, over‑voltage & overload protection, passes LPS limited power source requirement.
Q3: Which certifications does this adapter hold?
A: UL, cUL, FCC, GS, CCC, KC, PSE, UKCA, SAA, RCM, RoHS, CB and other global safety approvals.
Q4: Are interchangeable AC plugs included?
A: US/EU/UK/AU/KR/JP/CN AC plugs are available, plug kit is sold separately. Multiple DC plugs are optional and customizable.
Q5: What DC plug connectors can I get?
A: 5.52.1, 5.52.5, 4.0*1.7, XLR,  and more, custom DC connectors are supported.
Q6: Which energy‑efficiency standards does it satisfy?
A: Complies with DOE, CEC, ErP II, MEPS, GEMS, NRcan Level‑VI energy efficiency requirements.
Q7: What is the operating environment?
A: Working temperature: 0‑40℃, relative humidity 5%‑95% RH.
Q8: Is this a Class II power supply?
A: Yes, Class II design without earth pin, compact fully enclosed PC plastic housing.
Q9: What equipment can this adapter power?
A: Suitable for CCTV & DVR, various LED strip lights, routers, monitors, external hard drives, aquarium lights, printers and other low‑voltage indoor devices.
Q10: How long is the warranty?
A: 3‑year warranty provided.
Q11: Do you offer OEM & ODM customization?
A: Yes, custom logo, housing color, casing and packaging are available.


Why choose us?

Proven Quality Validation
Every adapter goes through 100% full‑load burn‑in test, delivering stable performance for long‑hour continuous operation.
• Interchangeable‑plug Design for Global Markets
One main adapter body works with multiple regional AC plugs. Helps you cut SKU costs and simplify cross‑border inventory management.
• Universal Wide‑range Constant‑voltage Output
Wide DC output range covers surveillance, LED lighting, consumer electronics and hobby project power demands.
• Strict Global Standard Compliance
Full set of international certifications removes market access barriers for your worldwide sales.
• Compact Reliable Hardware Construction
Class II fully‑enclosed PC case ensures safe daily indoor operation.
• Complete Customization Solutions
Flexible OEM/ODM service supports branding, appearance and packaging modification to match your project requirements.

Applications
  • Security and surveillance devices: CCTV Security Camera DVR
  • RGB & Single Color 2835 3528 5050 5630 5730 DC 5V/6V/12V/24V Low Voltage Flexible LED Rope Strip Lights
  • External hard drives, keyboards, microphones, aquarium lights, electric scales
  • Record players, routers, DVD players, monitors, SDR projects, printers and other 10W/12W devices
Power adapter applications examples
Note: Accept LOGO/color/package/case customization, OEM and ODM service
