48V Output 96W Universal AC Input Dimmable LED Driver with IP67 Waterproof Aluminium Case

48V Output 96W Universal AC Input Dimmable LED Driver with IP67 Waterproof Aluminium Case

Brand Name:	KSPOWER
Model Number:	KS-100LW-xxP
MOQ:	2 pieces
Price:	$15-29/pieces
Payment Terms:	T/T
Supply Ability:	300000pcs/monthly

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL cUL CE Class 2 Class P ENEC Gs TYPE HL...

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

60W 80W 96W

Output Type:

PWM

Input Voltage:

100-277V

Output Frequency:

50/60Hz

Output Current:

1.25A-6.67A

Application:

Street Light, Tunnel Light, Wall Lamp,Spot Light

Warranty:

5 Years

Output Mode:

Pwm Output

Efficiency:

89%

Output:

12V 24V 36V 48V

Dimming Mode:

Triac Phase-Cut Dimmable/0-10v/1-10v/10v PWM/Resistance

Material:

Aluminium Case

IP Rate:

IP67 IP65

Packaging Details:

Brown box and Carton

Highlight:

48V Output Dimmable Power Supply

Remote Control Dimmable Power Supply

IP67 PWM Dimmable LED Driver

Product Description

48V Output 96W Dimmable LED Driver IP67 Waterproof Shell

The KSPOWER - LP series triac dimmable LED driver (40W, 60W, 80W, 96W) provides a constant voltage solution with single channel operation. It accepts universal AC input voltage from 100V to 277V, with output voltage options of 12V, 24V, 36V, or 48V, compatible with most AC wall dimmers including Lutron and Leviton. The Class 2 dimming power transformer features a low-profile aluminum case suitable for dry and damp locations, making it ideal for LED strips, signage, billboards, and landscape lighting. With 2K frequency PWM output and IP65 waterproof rating, this phase dimmable LED driver comes with a 5-year warranty and delivers outstanding dimming performance.

Key Features

Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
Single Channel & Constant Voltage mode
Output Voltage: 12V/24V/36V/48V
Driver Type: Class 2 Class P
Enclosure: LISTED Enclosure with input and output wire
Dimming: Triac/Phase-cut, PWM, 0/1-10V or MLV/ELV Resistance Dimmable Available
Environmental: Dry and Damp locations
Wiring Compartments with Knock-Outs for Clean and Easy Installation
Current Limiting Overload Protection
Flicker-Free operation
Smooth Ripple Free Output Voltage

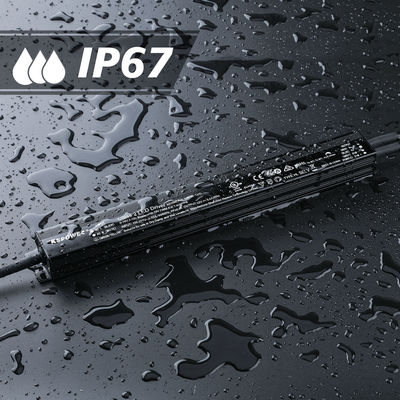

IP67 Rated Enclosure for Indoor and Outdoor Use
5-Year Warranty
Certifications: UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Dimming Connection Diagram

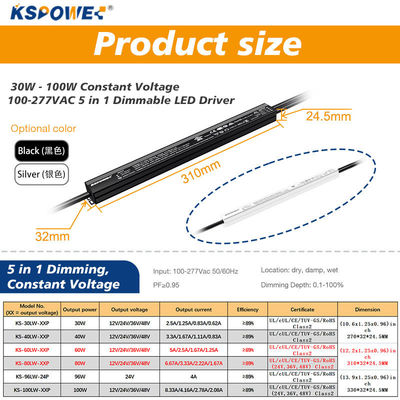

Technical Specifications

Dimming Type	Series	Power	Model (xx=output voltage)	Output voltage	Output current	Input voltage	Size
5 in 1 dimming	LP	30W	KS-30LW-xxP	12V/24V/36V/48V	2.5A \| 1.25A \| 0.83A \| 0.62A	100~277V 50/60Hz	2703224.5mm
		40W	KS-40LW-xxP	12V/24V/36V/48V	3.33A \| 1.66A \| 1.11A \| 0.83A	100~277V 50/60Hz	2703224.5mm
		60W	KS-60LW-xxP	12V/24V/36V/48V	5A \| 2.5A \| 1.67A \| 1.25A	100~277V 50/60Hz	3103224.5mm
		80W	KS-80LW-xxP	12V/24V/36V/48V	6.66A \| 3.33A \| 2.22A \| 1.66A	100~277V 50/60Hz	3103224.5mm
		96W	KS-96LW-24P	12V/24V/36V/48V	/ \| 4A \| / \| /	100~277V 50/60Hz	3553224.5mm
		100W	KS-100LW-xxP	12V/24V/36V/48V	8.33A \| 4.16A \| 2.78A \| 2.08A	100~277V 50/60Hz	3553224.5mm

Any custom label/package/case is acceptable. We provide OEM and ODM services.
