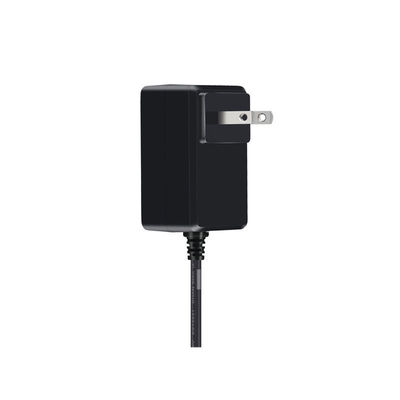

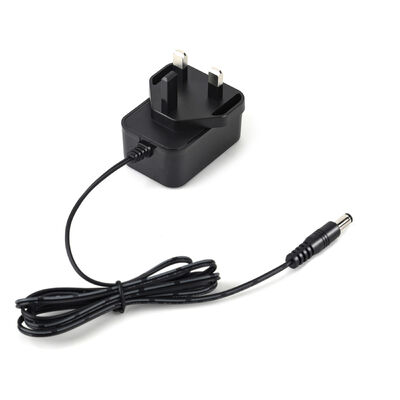

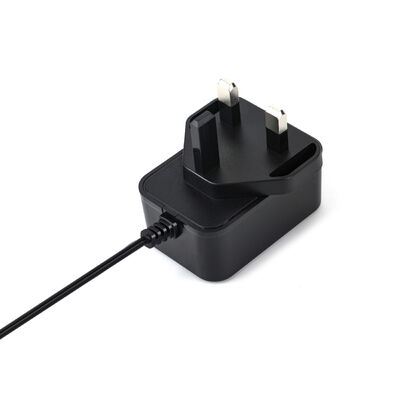

5.2V 2.1A 5V 2A Switching Power Supply Multi International For Christmas LED Light

Brand Name:	KSPOWER
Model Number:	KSDU
MOQ:	5 pieces
Price:	$1.40/pieces 5-499 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Output Type:

Connection:

Desktop / Plug In

Product Name:

5v Power Adapter

Output:

5v 2a /2.1a

Input:

AC 100-240v 50-60hz

Certificate:

UL CUL FCC Class 2 ...

Color:

White Black Customized

Type:

Desktop /Plug In

Efficiency:

DOE VI, CEC VI

Warranty:

3 Years

AC Inlet:

C14 C8 C6 Optional

Application:

LED Strip Light, Led Screen, Christmas Led Light,etc

Highlight:

5.2V 2.1A Switching Power Supply

LED Light Switching Power Supply

5V 2A Switching Power Adapter

Product Description

Input	100-240VAC, 50/60Hz
Ripple & Noise	≤120mV
Energy efficiency	Level VI
DC cord length	1.2m / 1.5m / 1.8m, etc.
DC jack size	5.52.1mm / 5.52.5mm / 3.51.35mm / 4.01.7mm / 2.50.7mm / 7.95.0mm / 4 pin / cigarette lighter, etc.
AC inlet	C6 / C8 / C14
AC cord length	1.2m / 1.5m / 1.8m, etc.

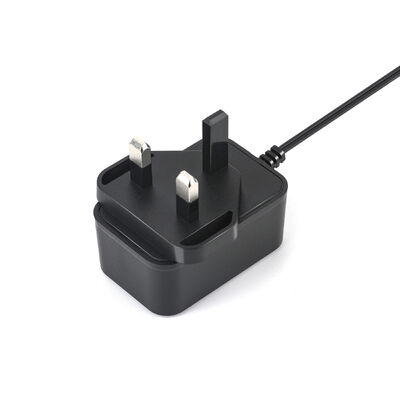

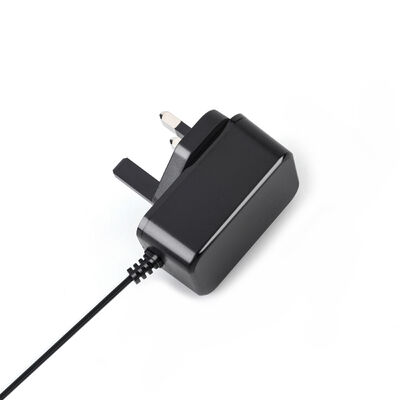

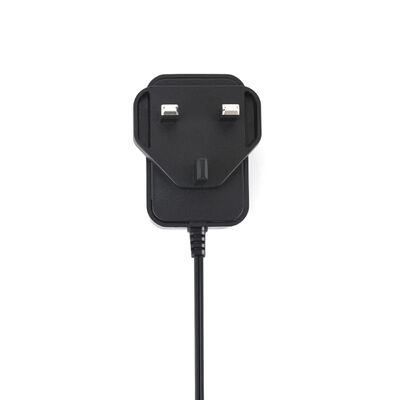

AC plug	US / EU / AU / UK / KR / CH / IT, etc.
Certifications	CLASS 2 UL1310 / cUL / UL / Level VI / CE / TUV / GS / FCC / KC / KCC / SAA / RoHS / CB / C-Tick / RCM / PSE / CCC
Protections	SCP / OPV / OCP / OTP / OPP
Working environment	-10°C~+40°C 5%~90%RH
Storage environment	-20°C~+85°C 5%~95%RH
Cooling method	Natural cooling down
RoHS compliant	Yes
Warranty	3 years

About 12V DC PSU Power Supply

Brand: KSPOWER Color: Black & White Input: 100V-240V 50/60Hz; Output: 12V Max 5A (60W) AC inlet: C6/ C8/ C14 Power source: Corded Electric Connector type: Barrel Connector

Advantages:

1. UL 1310 Class2 Listed.

2. Perfect for constant voltage led strips

3. Small volume but high efficiency

4. Automatic overload protection

5. Easy installation of the LED power supply

Safety:

V-0 grade flame retardant outer shell and built-in safety devices that protect against overheating overloading, overloading and short circuits provide maximum protection for you and your device.

Pls kindly check your device model, output and plug size before purchasing, if you are not sure, pls contact us.

How to determine whether this adapter is suitable for your device:

1. Please find the spec label of your device and check the working voltage. It should be 12V DC, not be AC 12V or lower/higher than 12V DC. Otherwise, your device will not work or be damaged.

2. Check the max current your device will draw. It should be equal to or less than 5A, such as 0.5A,0.6A, 0.7A, 0.8A, 0.9A, 1A, 2A, 3A, 4A, 5A. Otherwise, your device won’t work well and the power supply will be damaged very soon.

3. Check the power input port of your device. Inner core polarity should be"+", exterior polarity should be" - ".Please confirm whether the listed DC interface size includes the power input interface size of your device.

4. If you have a power supply for reference, their output voltage, plug size, polarity should be the same .If our ac adapter current is equal to or higher than original one’s, then it will work with your device.
