100% PC 9v 12v 1A 2A AC DC Power Adapter 24w 12v 2000ma Wall Mount Adaptor 60HZ

100% PC 9v 12v 1A 2A AC DC Power Adapter 24w 12v 2000ma Wall Mount Adaptor 60HZ

Brand Name:	KSPOWER
Model Number:	KSDU-24
MOQ:	100 pieces
Price:	$1.88-3.46/pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL /CE/GS/SAA/KC/CB/FCC/C-TICK/PAHS/ROHS

Output Type:

Single Phase

Input Voltage:

100-240V

Output Voltage:

9V/12V/24V

Output Frequency:

50/60HZ

Output Current:

1A/2A/2.67A

Product Name:

24w PSU Power Adapter

Output:

9V/12V/24V

Protection:

OVP, OCP, SCP, OTP, OPP

AC Plugs:

DC Jack:

5.5*2.1/5.5*2.5mm Or Custom

Warranty:

3 Years

Material:

100% PC

Type:

Wall-mounted

Color:

Black White

Highlight:

60HZ AC DC Power Adapter

24w 12v AC DC Power Adapter

2000ma Wall Mount Adaptor

Product Description

Feature:Regulated 24W DC Adapter

* Fixed AC UK plug 3 pin, universal AC input voltage
* Single channel & Constant Voltage power supply
* 100% Full load burn-in test

* Pass LPS (limited power source)
* 3 Years Warranty
* Class II power (without earth pin)

* Compact size, fully enclosed PC plastic case
* With or without LED indicator light
* Energy Efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI
* Safety automatic protections for over current, over load and short circuit.

Customised Connector Spec.:
5.5*2.5mm
5.5*2.1mm
3.5*1.35mm
LED terminal connector 6.3*3.0mm
6.0*4.4mm with pin inside 7.4*5.0mm with pin inside 4.8*1.7mm
4.0*1.7mm
3.0*1.1mm
2.5*0.7mm

Input Voltage	100-240 Volts AC 50/60Hz
NO.	KSDU-249C	KSDU-2412C	KSDU-2424C
Output Voltage	9V	12V	24V
Output Current	2.67A	2A	1A
Rated Power	24W
Working Temperature	-40℃ ~ +50℃
AC Plug	US EU KR AU JP CN etc.
Safety Standards	IEC/EN/UKCA 62368 60950, IEC 61558 approved
Safety Certifications	CE GS UKCA CB RoHS ...
Adapter Dimension	70 x 39 x28 mm / 70 x27 x40 mm
Cord Length	3-5 Feet

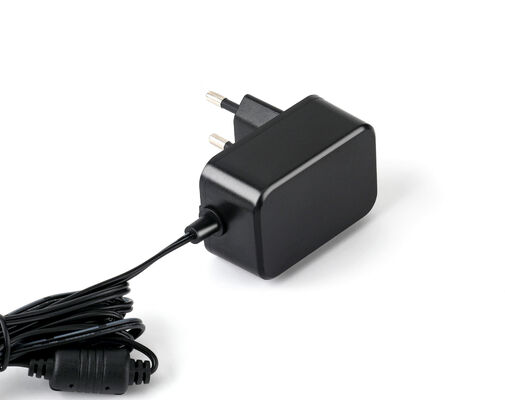

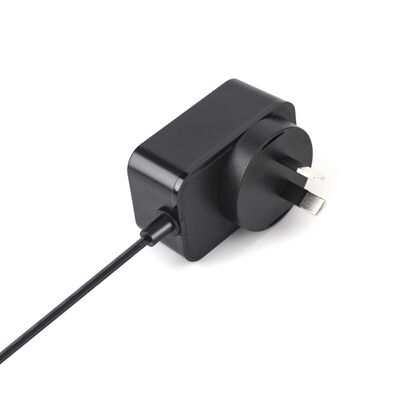

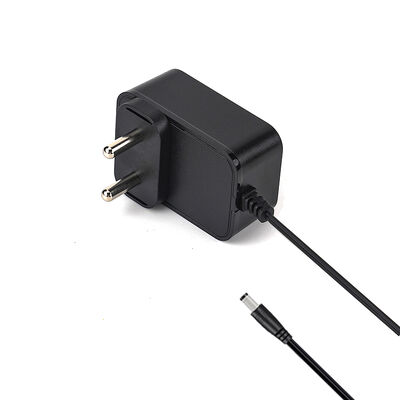

24W optional appearance 1st.

Horizontal, small and stable

24W optional appearance 2nd.

Vertical, small and narrow

Safety:
A flame retardant outer shell and built-in safety devices that protect against overheating overloading, overloading and short circuits provide maximum protection for you and your device.

Wide Applications:
The AC adapter is suitable for LED strips, audio amplifiers, wireless routers, audio and video power supplies, etc. Not
waterproof, indoor use!

Wide Uses:
⋆Security and surveillance devices: CCTV Security Camera DVR.
⋆RGB & Single Color 2835 3528 5050 5630 5730 DC9V/12V/ 24V Low Voltage Flexible LED Rope Strip Lights.
⋆External hard drive, keyboards, microphones, aquarium light, electric scales.
⋆Record player, router, DVD, Monitor, SDR project, Printer and Other DC9V/12V/ 24V devices (Not more than 24W).
