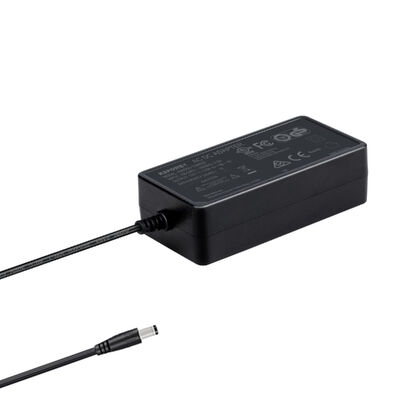

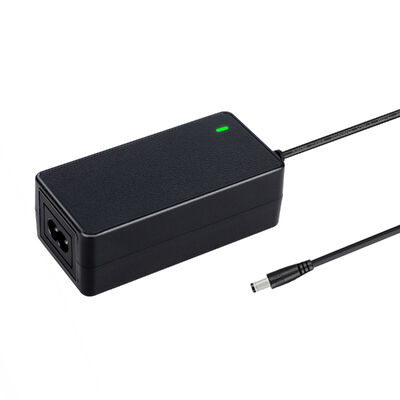

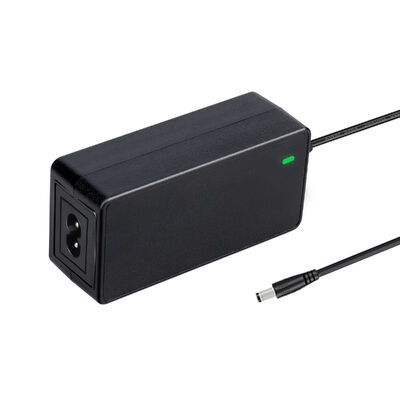

LED Light 12V 6A Desktop Power Adapter 4 Pins Transformator 12V 6.0 Amps AC DC Power Supply

Name: LED Light 12V 6A Desktop Power Adapter 4 Pins Transformator 12V 6.0 Amps AC DC Power Supply
Brand: Shenzhen Keysun Technology Limited
SKU: KSDU-7212
Price: 52.31 USD
Availability: InStock

Brand Name:	KSPOWER
Model Number:	KSDU-7212
MOQ:	100 pieces
Price:	$6.31/pieces 100-499 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China (Mainland)

Certification:

UL /CE/GS/SAA/KC/CB/FCC/C-TICK/PAHS/ROHS

Output Type:

Connection:

Desktop

Product Name:

12v 6.0 Amps Universal Ac Dc Power Adaptor

Output:

12V 6A

Protection:

OVP, OCP, SCP, OTP, OPP

AC Plugs:

US EU KR AU JP CN Etc.

DC Jack:

5.5*2.1/5.5*2.5mm Or Custom

Warranty:

3 Years

Material:

100% PC

Type:

Desktop

Application:

LED Light. Electrical Appliances

Highlight:

LED Light Desktop Power Adapter

4 Pins 12V 6A Power Adapter

LED Light AC DC Power Supply

Product Description

custom power adapter 4 pins transformator 12v 6a power supply 12V 6A 220v ac dc 12v 6.0 amps universal ac dc power adaptor

Products Description

NO.	KSDU-7212
Input Voltage	100-240 Volts AC 50/60Hz
Output Voltage	12VDC
Output Current	6A
Rated Power	72W
DC Connector Size	5.52.1mm or 5.52.5mm or others
AC Inlet	IEC320-C8 / IEC320-C6 / IEC320-C14
AC plug	US/EU/AU/UK/CN/KR plug optional if need
Safety Certifications	UL CE GS FCC KC KCC SAA RCM UKCA CCC CB RoHS ...

* Other specifications can be customized.

* 72W Desktop power supply Two options are available:

Fixed AC Plug desktop power supply
US /UK/EU/AU plug 2 pin or 3 pin can be customized

Detachable AC Plug desktop power supply
C6/C8/C14

Features:

* Global certifications
* Single output & Constant Voltage power supply
* 100% Full load burn-in test
* Pass LPS (limited power source)
* 3 Years Warranty
* Class II power (without earth pin); Class I power(with earth pin)
* Compact size, fully enclosed PC plastic case
* Starting time:〈 3 s
* Energy Efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI
* Safety automatic protections for over current, over load and short circuit.
* Green LED indicator for power on

Wide Uses:

⋆Security and surveillance devices: CCTV Security Camera DVR .

⋆RGB & Single Color 2835 3528 5050 5630 5730 DC12V Low Voltage Flexible LED Rope Strip Lights.

⋆External harddrive, keyboads, microphones, aquarium light, electric scales.

⋆Record player, router, DVD, Monitor, SDR project, Printer and Other DC 12V devices (Not more than 72W).

(Suitable for 1000ma 2000ma 3000ma 4000ma 5000ma 6000ma devices).

Applications

Product packaging

1.Sample is available.

2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.

3. Each one put in one small inner brown box, then 50 pcs put in one standard carton.

Package	Piece/Carton(pcs)	Piece Weight(KG)
OEM package	50	0.26
Dimension/Brown Box(mm)	Dimension/Carton(mm)	Gross Weight/Carton(KG)
1558535	455370175	14

Company Profile

Shenzhensshi Zhenhuan Electronic Co., Ltd and Shenzhen Keysun Technology Limited.

We’re an enterprise integrating industry and trade, which was founded in 2008, located in Shenzhen. Specializing in R&D, production and sales of AC DC adapter, Power Supply Units, LED driver and Li-ion battery charger, with more than 15 years of experience.

As a strength manufacturer, we have two factories in Shenzhen and Dongguan. We focus on finished product assembly and plug-in semi-finished product processing respectively. At present, we have more than 100 workers and a production area of 3,000 square meters.

We have our own brand--KSPOWER. Brand concept is “ Concentrate on doing one thing well and provide customers with a competitive and reliable products

Best Selling

How to determine whether this adapter is suitable for your device:

1. Please find the spec label of your device and check the working voltage. It should be 12VDC, not be AC 12V or lower/higher than 12V DC. Otherwise, your device will not work or be damaged.

2.Check the max current your device will draw. It should be equal to or less than 6A, such as 1A, 2A, 3A, 4A, 5A,6A Otherwise, your device won’t work well and the power supply will be damaged very soon.

3. Check the power input port of your device. Inner core polarity should be"+", exterior polarity should be" - ".Please confirm whether the listed DC interface size includes the power input interface size of your device.

4. If you have a power supply for reference, their output voltage, plug size, polarity should be the same .If our ac adapter current is equal to or higher than original one’s, then it will work with your device.
